ACCESSORIES (manometers - regulator hangers)

DIAMETER: Ø40 mm or Ø63 mm

Pressure range: 0 – 2.5 bar / 0 – 4 bar / 0 – 12 bar for Ø 40 mm, 0 – 16 bar for Ø 63 mm

Suitable Working Range: 70% of max. value

Operating temperature: -10 / + 50 °C

Body material: Steel for panel type / ABS plastic for other models

Sensitivity: kl. 1.6

Thread size: 1/8” bspt / 1/4 bspp

Product Details

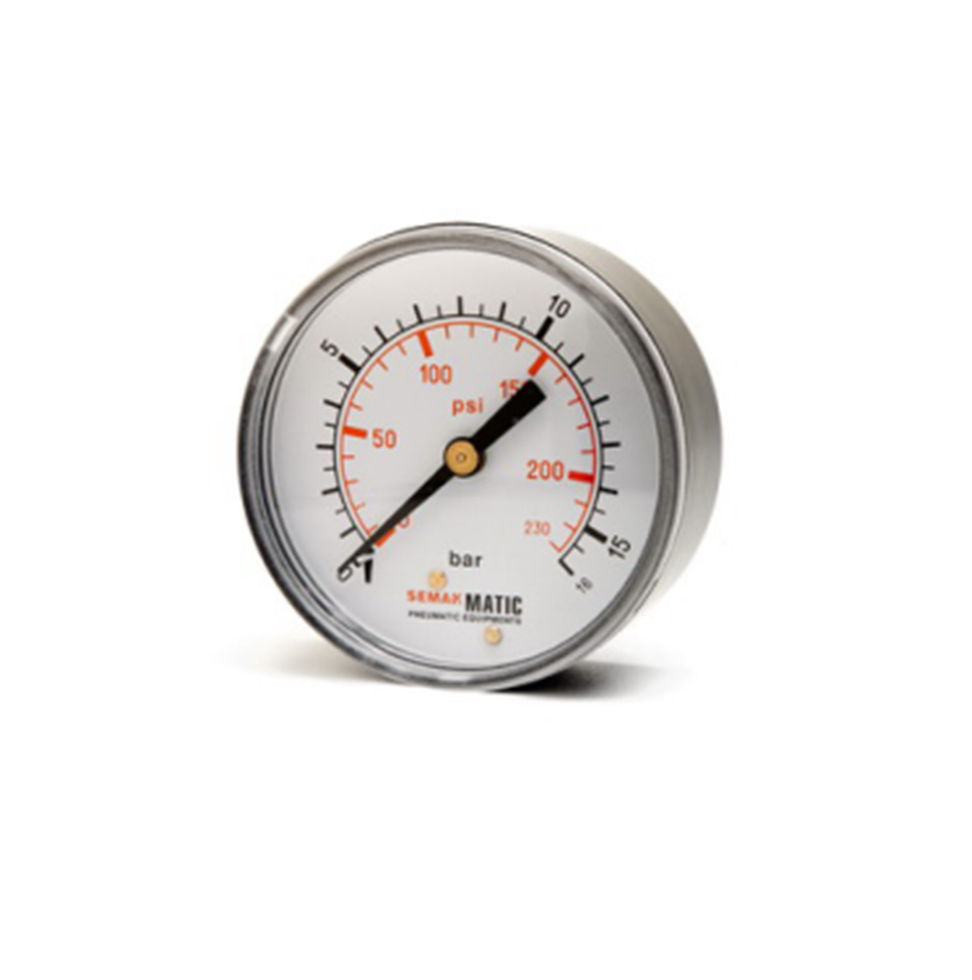

SEMAKMATIC series manometers are available in two different diameter sizes: 40 and 63 mm. Panel-type models have a 40 mm diameter. Pressure ranges for 40 mm diameters are 0 -2.5 mm / 0 - 4 mm / 0 -12 mm.

It has a diameter of 63 mm and a pressure range of 0 - 16 bar. The quality measure is kl. 1.6.

Conditioner Hangers

¼” – ½” hangers are compatible with conditioner – regulator – filter regulator models. Made of pressed steel and galvanized.

For technical information:

Wire. 0090 533 747 76 94 ( 8.30 – 18.00 )
